HDR3230-30

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
  • An Ocean in Mind Product An Ocean in Mind Product
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

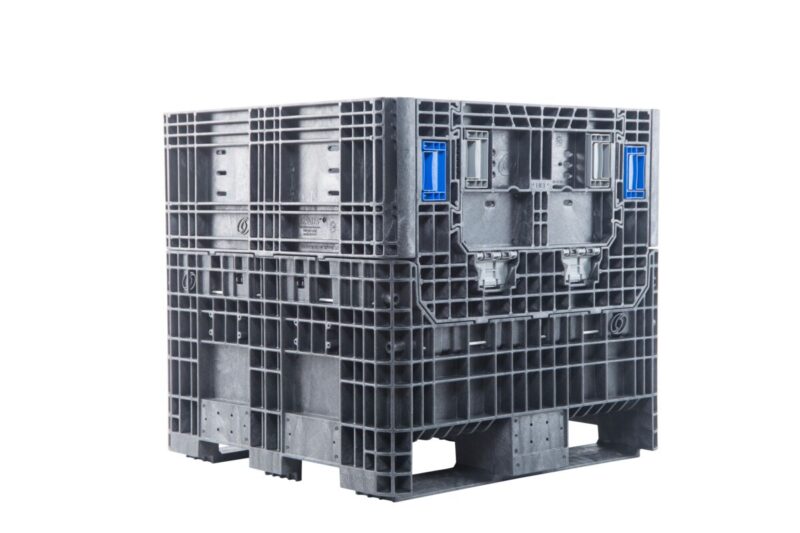

The heavy-duty BulkPak 3230 HDR Series reusable containers are ideal for metal stampings and other heavy, dense components. Containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping, these bulk bins stack securely atop each other. Designed to hold 2,000 lbs, these collapsible containers are built for long-lasting durability in heavy-duty applications. Pallet boxes offer the strength and rugged durability demanded in today’s material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by the distribution of load, handling methods, number, type of access doors, and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)

  • 32 x 30 x 30 footprint
  • Structural-foam molded in high-density polyethylene
  • Reach-through, spring-loaded ergonomic latches make collapsing containers and opening/closing access doors extremely easy
  • Deck: Solid deck with drain holes
  • Two base options include a standard 4-way forklift entry and a conveyable base with a 2-way forklift entry. Note: Due to fork entry size on the 30 side, pallet jack entry is not possible on the short side of this bin.
  • Access door: 0, 1, or 2 on the 32″ side (door configurations vary by model)
  • Popular applications: automotive components, bearings, hardware, industrial equipment, metal parts, plastics and rubber parts, resin, powder, and tools

Specifications

Outside Length In 32.3
Outside Width In 30.3
Outside Height In 30
Inside Length In 29.3
Inside Width In 27.3
Prod Clearance In 23.3
Collapsed Height In 18.2
Container Capacity Lb 2000
Weight Lb 73.2
Maximum Loaded Stack Static 6 High
Maximum Loaded Stack Dynamic 4 High
Return Ratio 1.7:1
Door Openings Long H In 11.5
Door Openings Long W In 18.1
53ft Trailer Qty Assembled 180
53ft Trailer Qty Collapsed 300

Options

Cardholders

Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Placard Boards

Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Compatible With

CHDR3230-2433

Size (IN) : 33  x  31  x  3.8

Similar Products

HDR3230-25-2367

Size (IN) : 32.3  x  30.3  x  25

HDR3230-34-2369

Size (IN) : 32.3  x  30.3  x  34

HDR3230-39-2370

Size (IN) : 32.3  x  30.3  x  39

HDRS3230-18-2371

Size (IN) : 32.3  x  30.3  x  18
