GP4048-34

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
  • An Ocean in Mind Product An Ocean in Mind Product
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

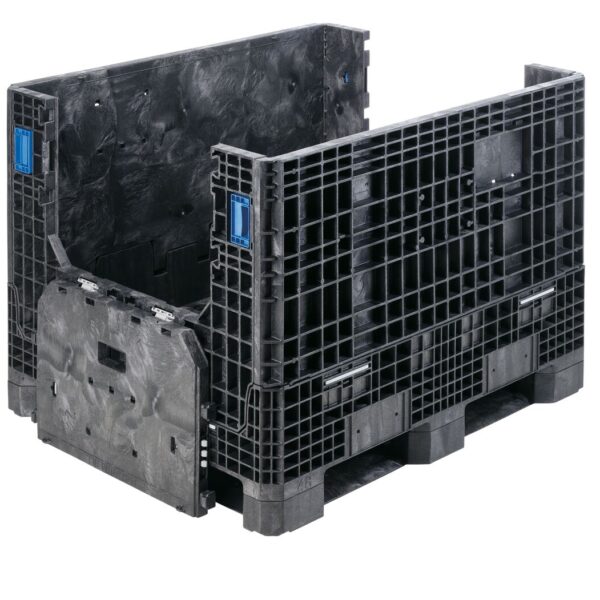

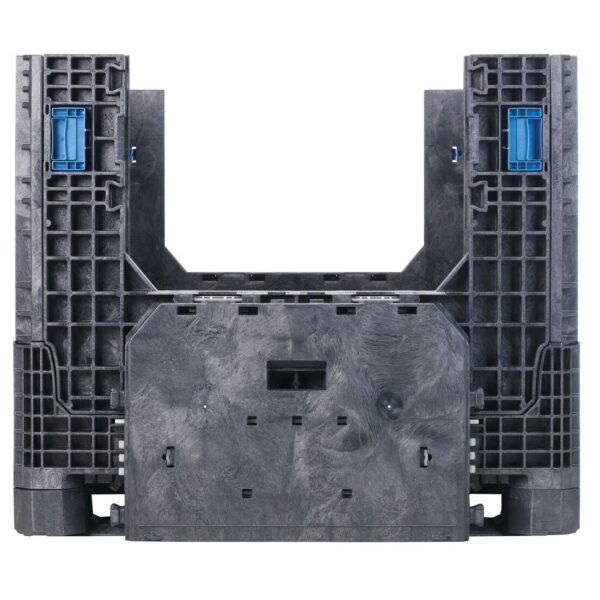

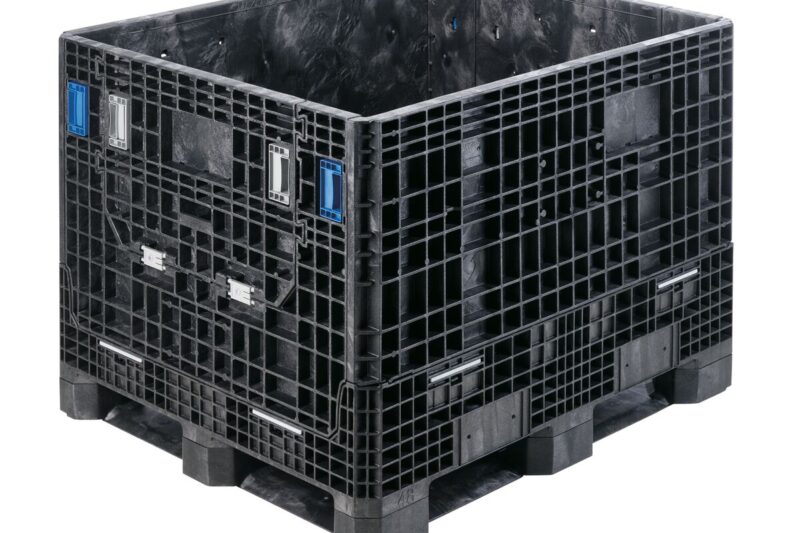

The medium-duty BulkPak 4048 GP Series was designed for a wide variety of product sizes, shapes, and weights. These bulk containers allow more parts to be handled, stored, and shipped…with fewer containers and in fewer trips. The advanced design results in a consistent tare weight that improves inventory and shipping efficiencies. Containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping, these bulk bins stack securely atop each other when full. Pallet boxes offer the strength and rugged durability demanded in today’s material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by the distribution of load, handling methods, number, type of access doors, and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)

  • 40 x 48 x 34 footprint
  • Structural-foam molded sidewalls and structural-channel molded base
  • High-density polyethylene
  • Container capacity: 2,000 lbs
  • All-plastic construction eliminates the risk of rust
  • Self-standing sidewall for safe and efficient assembly and collapse
  • 0 or 2 access doors on 40” side
  • Base: All-plastic picture frame bottom
  • Deck: Solid or ventilated
  • Sidewalls: Solid or ventilated
  • Popular applications: Produce, caps/closures, plastic/rubber parts

Specifications

Outside Length In 48
Outside Width In 40
Outside Height In 34.1
Inside Length In 45
Inside Width In 37
Prod Clearance In 27.7
Collapsed Height In 14.1
Container Capacity Lb 2000
Weight Lb 142.3
Maximum Loaded Stack Static 6 High
Maximum Loaded Stack Dynamic 3 High
Return Ratio 2.7:1
53ft Trailer Qty Assembled 90
53ft Trailer Qty Collapsed 240

Options

Cardholders

Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Placard Boards

Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Compatible With

CGP4048-2428

Size (IN) : 48.5  x  40.5  x  2.75

Similar Products

GP4048-39-2373

Size (IN) : 48  x  40  x  39.1

HDMX4048-46-2376

Size (IN) : 48  x  40  x  46

HDR4048-25-2378

Size (IN) : 47.2  x  39.4  x  25

HDR4048-34-2379

Size (IN) : 47.2  x  39.4  x  34.3

HDR4048-39-2380

Size (IN) : 47.2  x  39.4  x  39.4

HDR4048-50-2381

Size (IN) : 47.2  x  39.4  x  49.9
