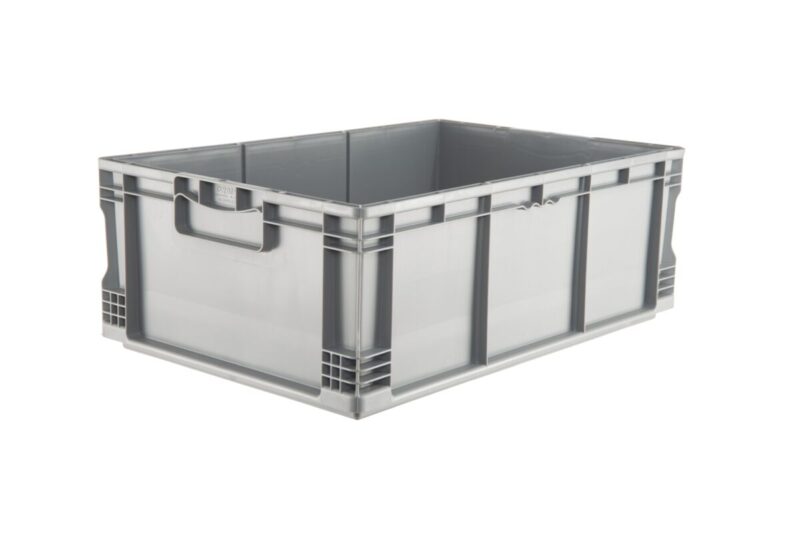

ORBIS AROS® automated system containers were designed for use in today’s mini-load systems to cost-efficiently standardize unit loads. ORBIS all-plastic containers are designed for minimal deflection and will work with a variety of insertion and extraction equipment. Smooth, straight walls for maximum cubic capacity and dimensional consistency for repeatable performance in mini-load systems. These plastic mini-load containers are fully recyclable at the end of their service life. *Please note that ORBIS publishes the specifications for this product line in inches, but the model name does not correspond to inches. This system was designed on a metric footprint and the model name reflects this.
Download our AROS® for Automated Storage Applications Guide for more info!
Specifications
Outside Top Length Mm | 600 |
Outside Top Width Mm | 400 |
Outside Bottom Length Mm | 600 |
Outside Bottom Width Mm | 400 |
Inside Top Length Mm | 568 |
Inside Top Width Mm | 373 |
Inside Bottom Length Mm | 558 |
Inside Bottom Width Mm | 363 |
Total Container Height Mm | 218 |
Weight Kg | 201 |
53 Trailer Qty | 1800 |
