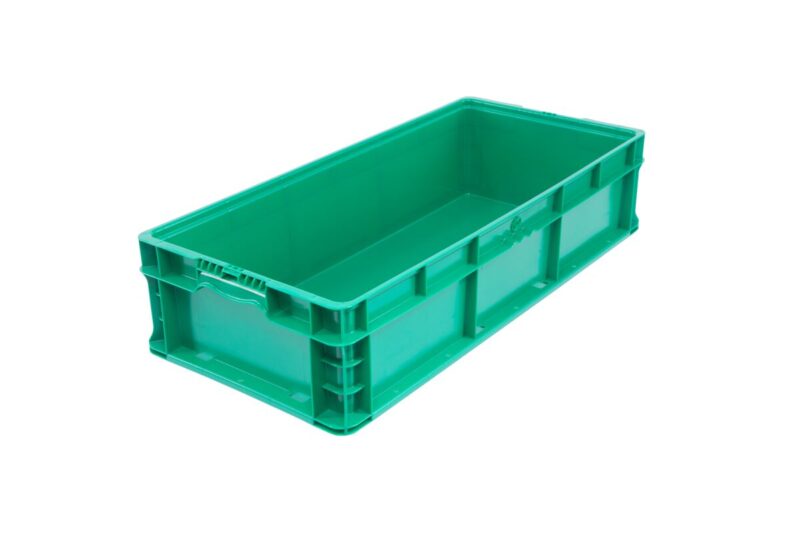

NXO3215-7
The StakPak System offers more than 20 straight-wall modular containers with advanced features to optimize your reusable packaging system. The NXO3215-7 is designed for just-in-time applications where the same containers are used for shipping, storage, and work-in-process. StakPaks are compatible with a wide variety of AIAG pallets, top caps, and seat belt systems. Reinforced external ribbing adds maximum stacking strength. Molded-in continuous bumper keeps dirt and dust from contaminating product. Drain holes in the bumper and handles ensure easy cleaning and draining. Smooth, straight interior walls offer maximum cube utilization and easy interface with custom interior dunnage.
- 32 x 15 x 7 footprint
- NXO design
- Unique size for larger parts
Specifications
| Outside Length In | 32 |
| Outside Width In | 15 |
| Outside Height In | 7.5 |
| Inside Bottom Length In | 29.5 |
| Inside Bottom Width In | 13.1 |
| Prod Clearance St In | 6.9 |
| Weight Smooth Textured Lb | 4.7 |
| 53ft Trailer 50in Unit Loads | 1248 |
| Containers Per Layer | 4 |
Textured Bottom
Molded-in textured surface available on StakPak container bottom.
Cardholders
Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.
RFID Labels
Accommodates many types of RFID labels. These totes offer several flat areas designed specifically for the precise placement of labels and tags. Multiple label styles are available to meet technical requirements.
Container Hot Stamp
Hot Stamp identification is available for a wide variety of ORBIS totes. The original artwork must be supplied to ORBIS at the time of the order. Size, feasibility and available location of the hot stamp will vary for each container. Minimum shipment is required.
Label Placards
Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
