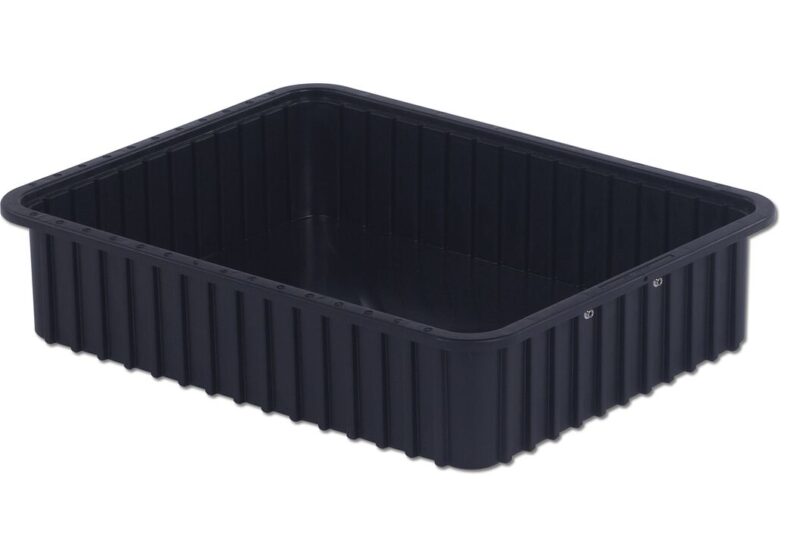

DC3050-XL

Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

Add flexibility with dividable containers. Slide-in dividers allows instant container configuration. Multi-purpose stack-only LEWISBins+ ESD-Safe Divider Box Containers can be divided into compartments on 1.25″ centers with easy-to-add dividers. These dividable containers are ideal for use in commercial, industrial, electronics and healthcare markets for storage, assembly, fabrication and distribution applications.

Click here to download the divider compatibility chart

Features

  • XL Conductive material.
  • Strong stacking ridge and innovative ribbed walls ensures high performance.
  • Load capacity of 40 lbs. per container.
  • Compatible with many kinds of racking, shelving and material handling equipment.
  • Anti-static cardholders available for ESD-Safe identification.
  • Two optional ESD-Safe Divider Box Covers are available for added product protection. A Faraday Cage is created when used with ESD-Safe Divider Boxes. Choose from the Insert Cover or Heavy Duty Solid Cover.

Specifications

Outside Top Length In 22.4
Outside Top Width In 17.4
Outside Bottom Length In 20.9
Outside Bottom Width In 15.9
Inside Top Length In 20.3
Inside Top Width In 15.3
Inside Bottom Length In 20.1
Inside Bottom Width In 15.1
Height In 5.0
Weight Lb 2.8
Product Clearance In 4.9
Internal Volume Cu Ft 0.8
Carton Quantity 4

Options

Dividers

Removable dividers provide flexiblity to standard containers. Use long and short dividers to divide totes in a variety of different ways.

Snap-On Cardholders

Envelope style and available with one or two snaps. All have a clear window with solid black.

ESD-Safe Cardholders

ESD-safe snap-on cardholders are envelope-style with a clear, pink window. These are produced in clear anti-static pink material. All have 2 snaps.

Compatible With

CDC3000-XL-11418

Size (IN) :  x   x

CDC3040-XL-11419

Size (IN) :  x   x
