HDMX4845-50

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
  • An Ocean in Mind Product An Ocean in Mind Product
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

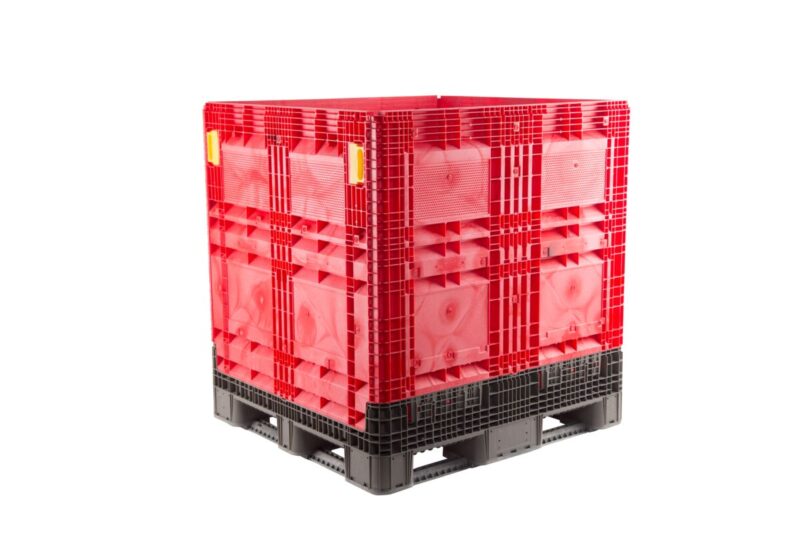

The HDMX4845-50 MaxCube was designed for superior shipping efficiency and maximum cubic capacity. It offers non-sequential folding action and collapses easily to a 4.0 to 1 return ratio. On the production floor, the MaxCube is compatible with many types of dumping equipment. The reusable, collapsible MaxCube maximizes payloads while lowering shipping costs. With smooth interior surfaces and a cover to protect contents, the MaxCube ensures product cleanliness. It is manufactured in FDA-compliant material to meet sanitary requirements for packaging handling in food, beverage, and pharmaceutical applications.

  • 45 x 48 x 50 footprint
  • Smooth interior walls prevent product damage during loading and unloading
  • Recessed cover reduces damage (included with container)
  • Large, easy-release latches for rapid assembly and collapse
  • 4-way fork truck entry
  • Protected area for multiple identification options
  • Popular applications: preforms, bottles, caps and closures

Specifications

Outside Length In 48
Outside Width In 44.5
Outside Height In 50
Inside Length In 45
Inside Width In 41.5
Prod Clearance In 44
Collapsed Height In 13
Container Capacity Lb 1000
Weight Lb 140
Maximum Loaded Stack Static 4 High
Maximum Loaded Stack Dynamic 2 High
Return Ratio 4:01
Internal Volume Cu Ft 49.9
53ft Trailer Qty Assembled 56
53ft Trailer Qty Collapsed 224

Options

Cardholders

Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Placard Boards

Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Compatible With

CHDMX4048-2429

Size (IN) : 49.1  x  41.1  x  2.1

Similar Products

HDMP4845-25-2382

Size (IN) : 48  x  44.5  x  25

HDMP4845-27-2383

Size (IN) : 48  x  44.5  x  26.5

HDMP4845-34-2384

Size (IN) : 48  x  44.5  x  34

HDMP4845-39-2385

Size (IN) : 48  x  44.5  x  39

HDMP4845-42-2386

Size (IN) : 48  x  44.5  x  42

HDMP4845-50-2387

Size (IN) : 48  x  44.5  x  50

HD4845-34-2388

Size (IN) : 48  x  45  x  34

HDRS4845-19-2390

Size (IN) : 48  x  45  x  19.2

HDRS4845-21-2391

Size (IN) : 48  x  45  x  21.2

HDRS4845-24-2392

Size (IN) : 48  x  45  x  24.9
